BIM-powered robotics for MEP installation

Boost speed, safety and accuracy with the Hilti Jaibot

What if you could fully automate the construction workflow by going beyond mere digital planning? What if a robot could take on repetitive work, reducing the risk of human error and complete MEP projects faster, with increased safety and accuracy? Building Information Modelling (BIM) has already helped to greatly reduce complexity. Now, using digital planning as the base, our semi-autonomous drilling robot Jaibot is taking installation work to the next level, achieving significant productivity gains.

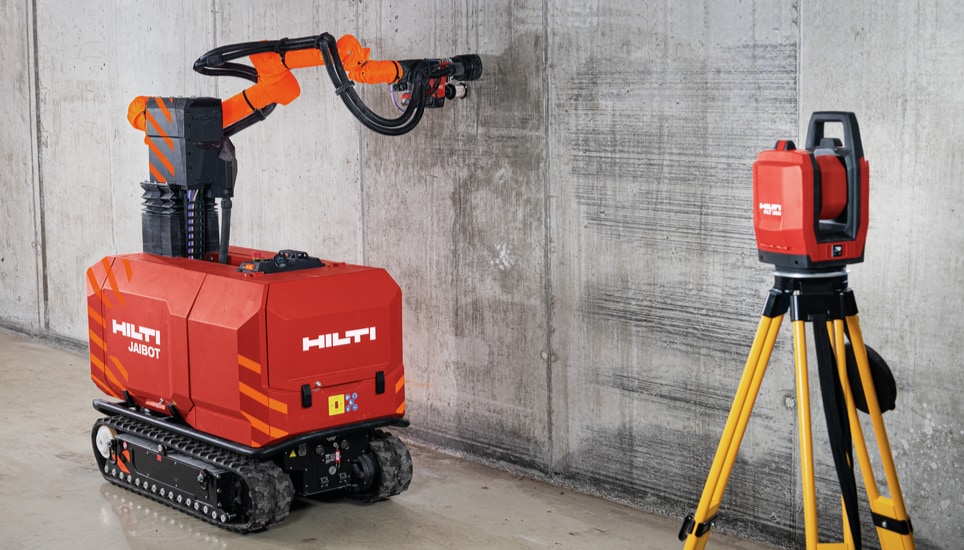

Hilti PLT 300 total station and Jaibot drilling robot on a construction site performing MEP installation.

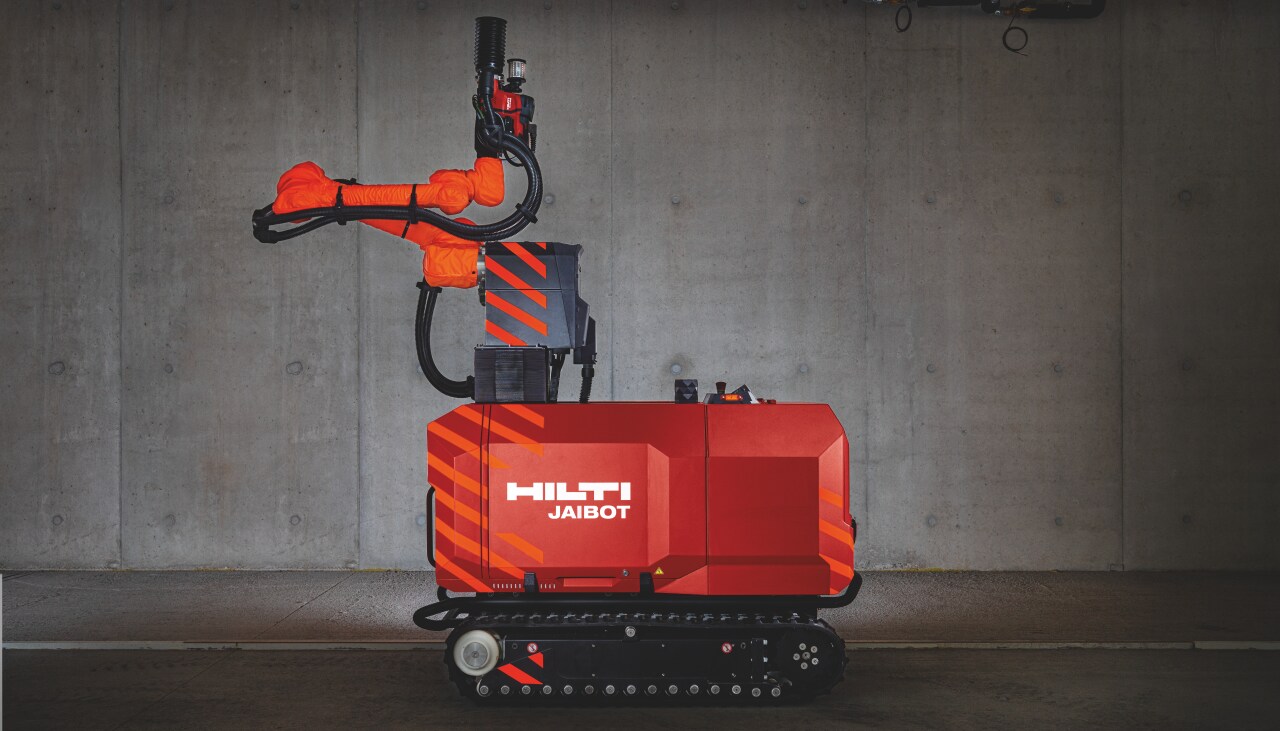

The Jaibot solution

Join the future of construction today

  • A construction robot for MEP/ IF installation work.
  • A semi-autonomous drilling robot for ceiling installations.
  • A completely cordless system that can work for up to 8 hours between charges and has a built-in dust removal and marking system.
  • An easy-to-use intelligent system that doesn’t require specialised skills to operate.

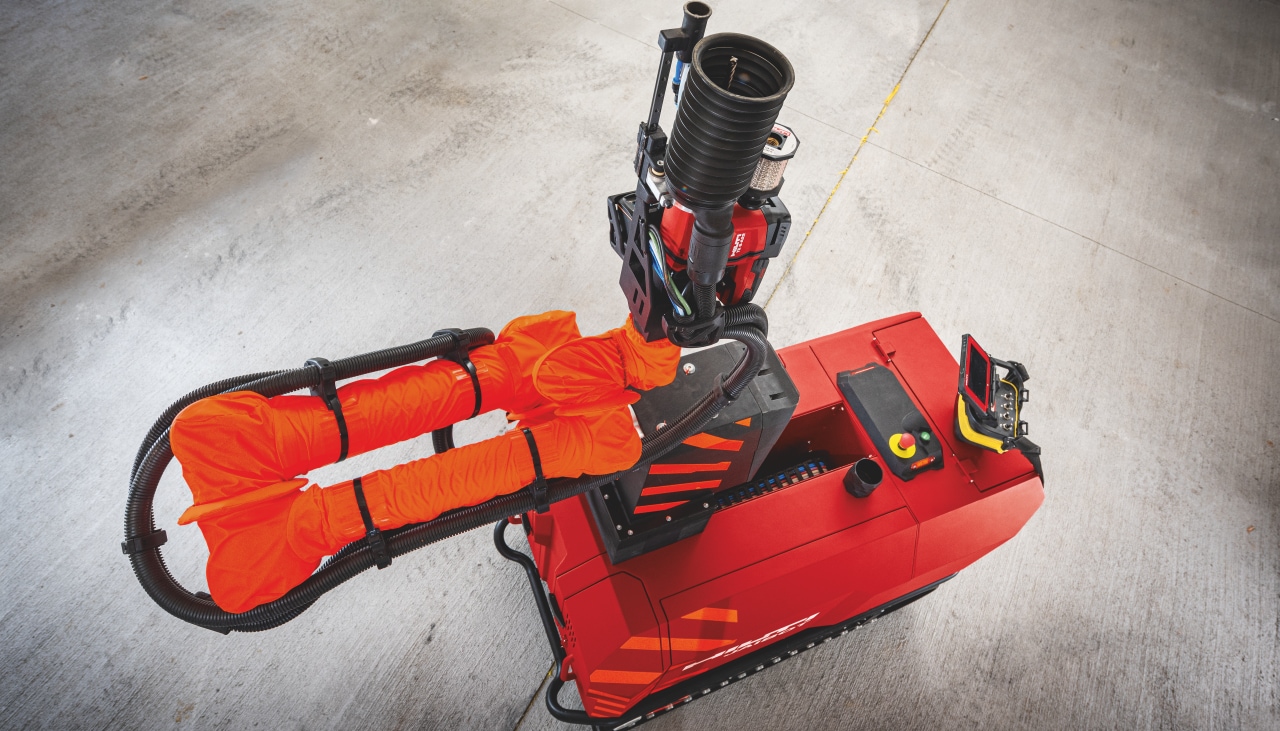

How does Jaibot work?

Increase productivity with a semi-autonomous ceiling drilling robot

The semi-autonomous drilling robot Jaibot helps your installation projects become more productive. Using a digital plan, the robot takes over project execution and the same data can be used to track the progress and status of the installation project. As the robot marks and then drills the holes according to the plan, it helps to relieve the construction worker of strenuous and repetitive tasks like overhead drilling. All your workforce needs to do is operate the Jaibot – our new construction robot.

Greater accuracy

Digitising the construction value chain

BIM introduced us to 'digital planning.' Engineers use digital planning to contribute to a building process that can be more efficient, results in fewer problems on site and produces the optimum system design. A construction robot uses the same data for job execution.

To automate your jobsite with Jaibot:

  • Upload the data from Autocad or Revit to the Hilti Cloud.
  • Import the job file via the rugged PLC 400 field tablet for layout applications.

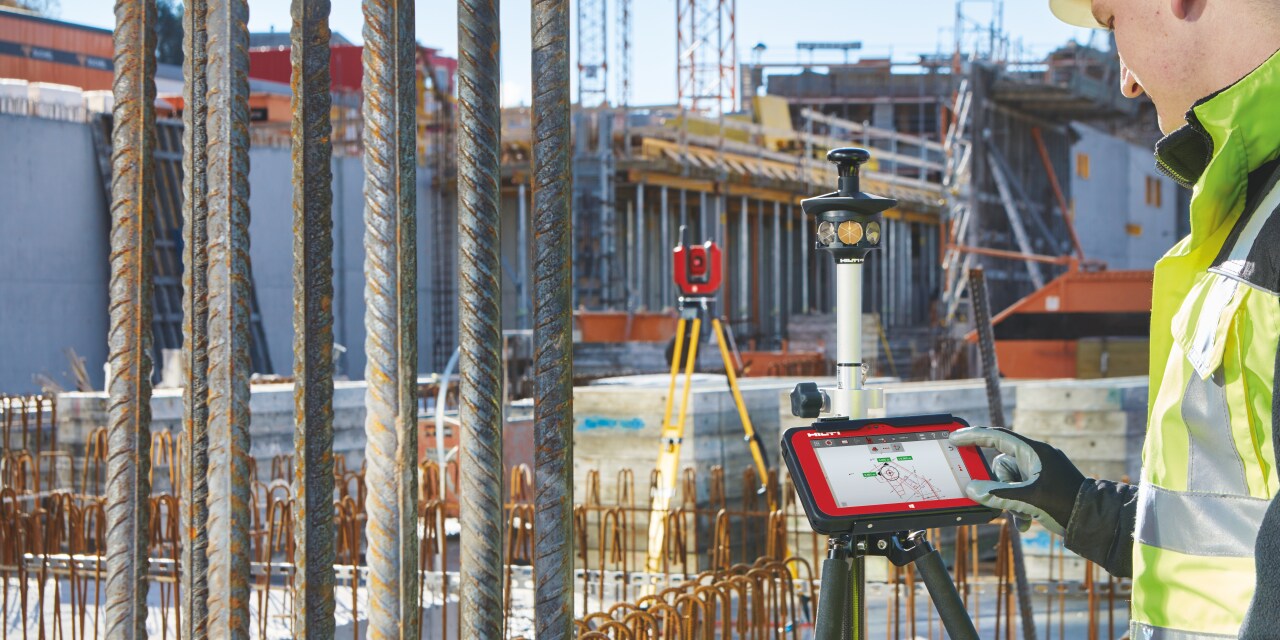

  • Layout the construction site with the Hilti total station PLT 300.

The construction robot then drills thousands of holes autonomously according to the digital drilling plan resulting in far greater drilling accuracy from this digitised process.

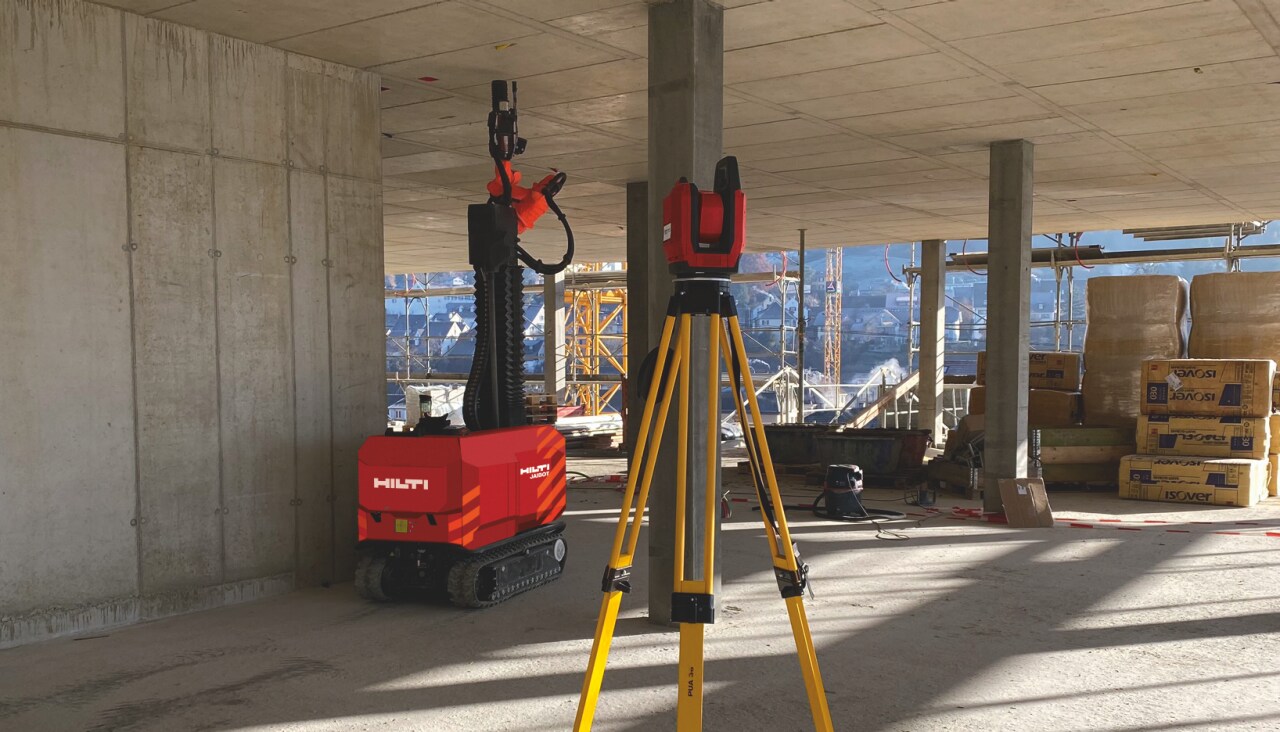

Concrete ceiling and construction robot drilling on a jobsite.

Work safer

Construction robotics help reduce potential risk areas

Overhead work for MEP installation may be strenuous, challenging and time-consuming for your workers. And in times of skilled-labor shortage in the construction industry, taking good care of your team is a top priority. For your team, working with a construction robot helps reduce the risks associated with their jobsite projects. Their job is now to operate the Jaibot, set-up the total station and ensure that the Jaibot can perform its job.

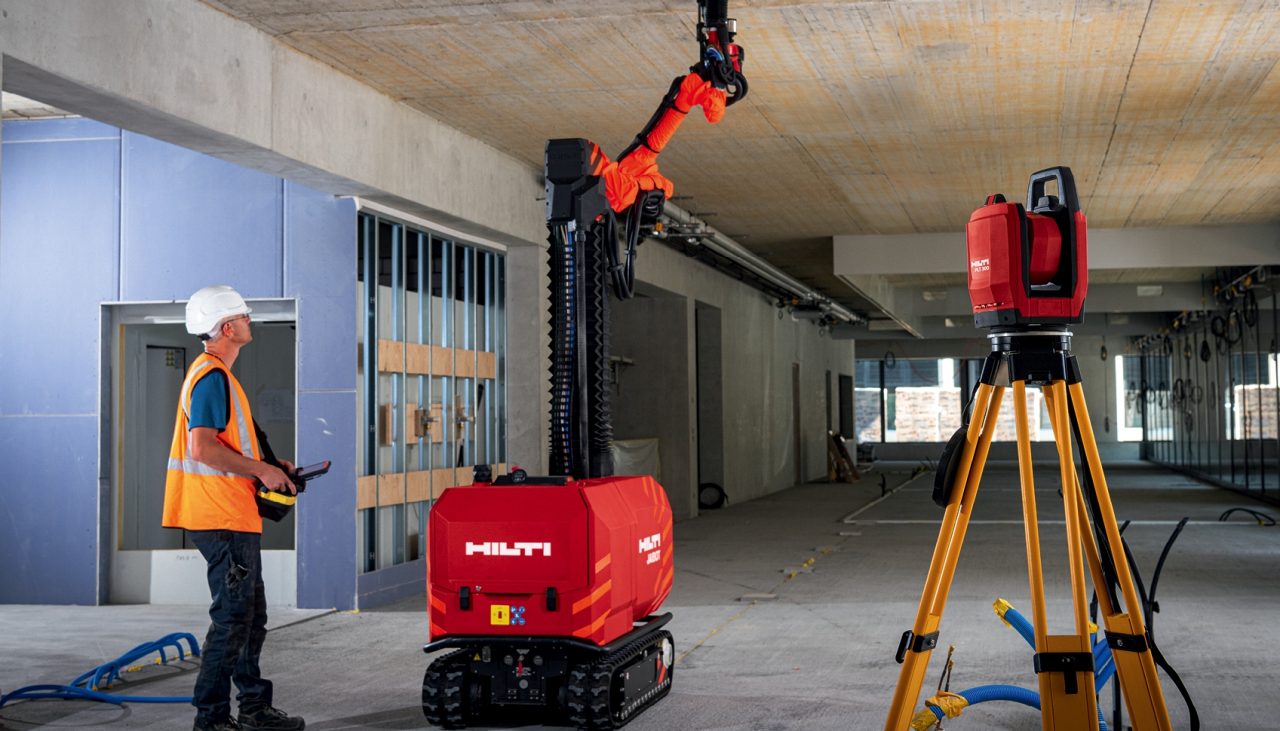

Construction worker safely operating ceiling drilling robot Jaibot on a jobsite

Fewer errors

Everything where it's supposed to be

Digital data can be very accurate, but there may be still a number of potential risks involved with MEP installations. The coordination of multiple contractors can be difficult and projects may sometimes suffer from poor installation quality. Coordinating the different applications may also be costly. A construction robot may be faster and more accurate as it autonomously drills the holes according to the digital plan. The location, the hole depth and diameter are defined by the drilling plan, likely resulting in fewer errors, greater accuracy and cleaner holes. When marking and drilling, Jaibot automatically syncs back to the system. The current status of the project can be tracked live for documentation.

How Hilti can help throughout your project

BIM & CAD Resources

Design tools

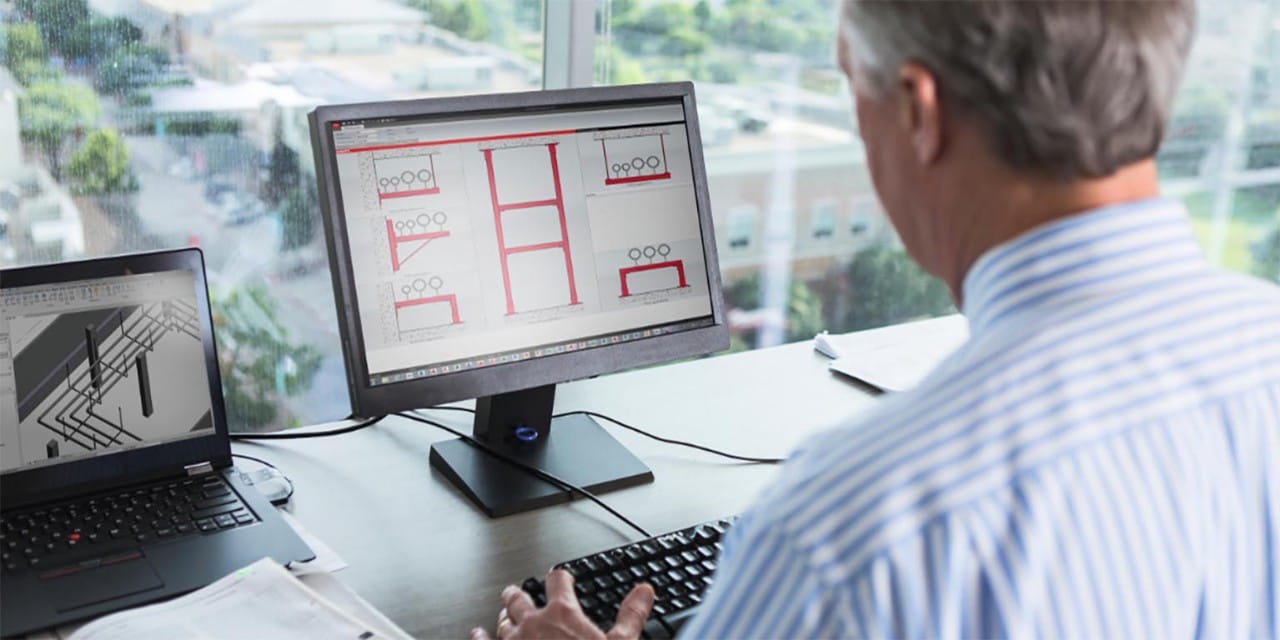

Design modular support systems with Hilti PROFIS Installation construction design software, BIM objects and apps.

Read more

BIM to Field

BIM-to-field

Helping increase productivity and accuracy by positioning the MEP support fastening points with a total station.

Read more

Pre-fabrication

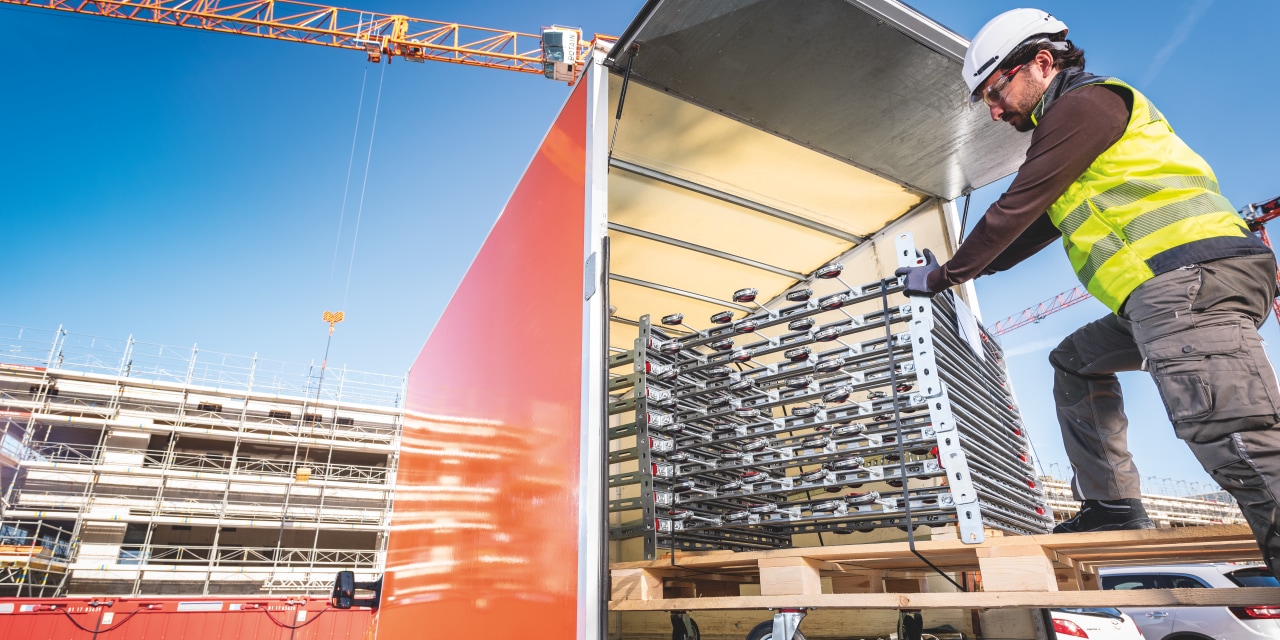

Hilti modular supports can be precut, kitted, and pre-assembled on site for faster and safer installation.

Get in touch today
