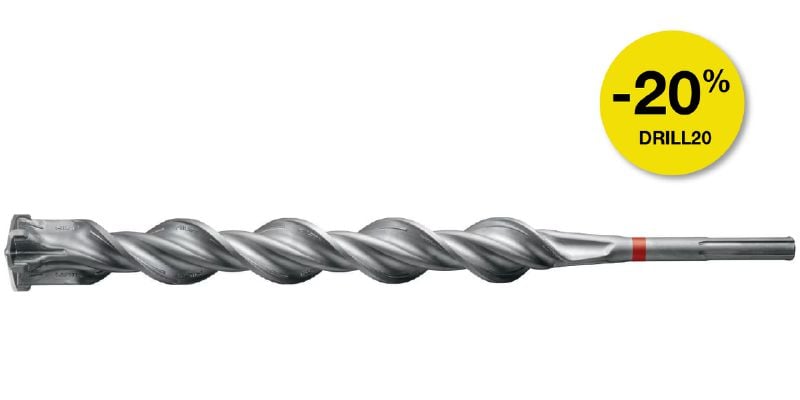

TE-YX (SDS Max) Metric hammer drill bit

Ultimate SDS Max (TE-Y) hammer drill bit for exceptional drilling performance in reinforced concrete (metric)

  • Connection end: TE-Y (SDS-max)
  • Base material: Reinforced concrete, Concrete, Masonry, Brick, Sand-lime block
  • Working mode: Hammer drilling

Customers also searched for hammer drill bithammer drillmasonry drill bitsdrill bits or sds max.

Choose options

Diameter
  • 12 mm
  • 14 mm
  • 16 mm
  • 18 mm
  • 20 mm
  • 22 mm
  • 24 mm
  • 25 mm
  • 28 mm
  • 30 mm
  • 32 mm
  • 35 mm
  • 37 mm
  • 40 mm
  • 45 mm
  • 55 mm
Working length
  • 200 mm
  • 250 mm
  • 400 mm
  • 450 mm
  • 520 mm
  • 770 mm
  • 800 mm
  • 1150 mm
  • 1170 mm
Length
  • 320 mm
  • 370 mm
  • 520 mm
  • 570 mm
  • 670 mm
  • 920 mm
  • 1300 mm
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From NZD220.00

Technical Data

Connection end
TE-Y (SDS-max)
Base material
Reinforced concrete, Concrete, Masonry, Brick, Sand-lime block
Working mode
Hammer drilling
Head shape
Multi cutter
Head material composition
Tungsten carbide

Features & Applications

Features

  • Optimised multi-cutter (4 or 6-cutter) carbide head – superior drilling performance and less jamming when hitting rebar
  • Heat-treated flute offers superior wear resistance and maximum robustness, with a wear mark to estimate the bit's suitability for setting anchors
  • Slimmer and lighter helix for more comfortable drilling and superior drilling speed
  • Fully embedded drill bit head for maximum durability and longer life
  • In the unlikely event of breakage, the drill bit will be considered for replacement as long as the wear mark on the helix is still visible

Applications

  • Hammer drilling in reinforced concrete, concrete, masonry and other construction materials
  • Drilling holes for all chemical anchor installation purposes
  • Drilling anchor holes for all mechanical anchor installation purposes
  • Installing rebar using Hilti injectable adhesive mortar
  • Extra-long drill bits available for renovation work, e.g. sealing joints in masonry and concrete to prevent water penetration

For approval or certificate information, please see individual items.
