AG 230-24D Angle grinder

Angle grinder AG 230-24D 240V case #2148673

Configurator
Technical Data
Documents
Features & Applications
Related Products
AG 230-24D (89262)
L098346_cropped (179175)
L098359_cropped (179173)
L098390_cropped (179177)
L098374_cropped (179176)

2400W angle grinder with dead man's switch, rotatable grip and long-lasting carbon brush, for discs up to 230 mm

  • Disc diameter: 230 mm
  • Weight according to EPTA-Procedure 01/2003 without battery: 6.5 kg
  • Max. cutting depth: 68 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
NZD845.00
NZD845.00 / 1 Piece

Technical Data

Disc diameter
230 mm
Weight according to EPTA-Procedure 01/2003 without battery
6.5 kg
Max. cutting depth
68 mm
No load RPM
gear 1: 6500 rpm
Trigger type
Deadman switch
A-weighted emission sound pressure level
97 dB (A) 1
Triaxial vibration value for angle grinding (ah,AG)
5.8 m/s² 2
Disclaimer
Use the specified guard for the type of disc selected
Rated input power
2400 W
Rated input voltage
240 V
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction AG 230-24D (04), Arabic, cn, Danish, English, Estonian, Finnish, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Chinese [ 8.8 MB ]

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the disc jams – helping to reduce a common safety hazard
  • Hilti Smart Power technology automatically adjusts power output to suit the material being cut – helping to deliver consistently high cutting performance and to protect the motor from overload
  • Active Vibration Reduction (AVR) makes the tool much less tiring to use – helping to increase daily productivity

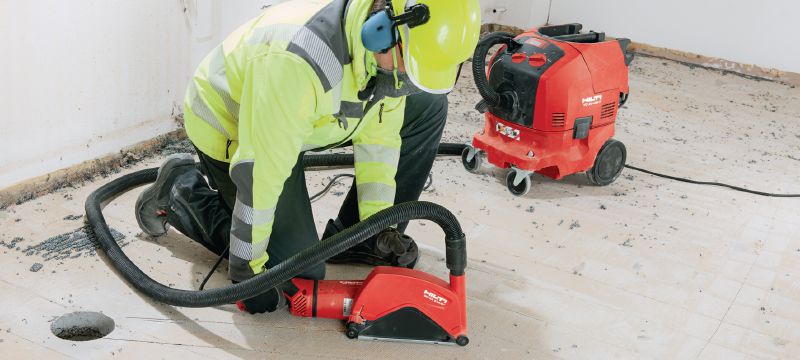

  • Rugged dust removal hood (optional) for virtually dustless operation and soft grips for greater working comfort
  • Adjustable side handle – for a secure, comfortable grip when working in any position

Applications

  • Cutting and grinding steel and metal
  • Cutting concrete
  • Slitting for the installation of cable conduits in concrete and brick
