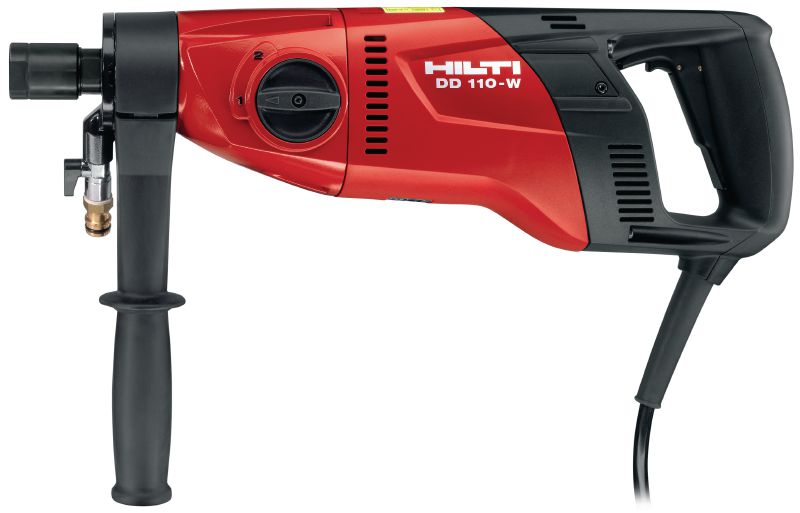

DD 110-W Core drill
Compact, light diamond coring machine for wet or dry handheld coring from 16-162 mm (5/8 - 6-3/8") in diameter
- Diameter range: 16 - 162 mm
- Base material: Concrete, Masonry
- Operation mode: Hand-held drilling system
Technical Data
Diameter range
16 - 162 mm
Base material
Concrete, Masonry
Operation mode
Hand-held drilling system
Number of gears
2
No load RPM
gear 1: 740 rpm; gear 2: 1580 rpm
Weight according to EPTA-Procedure 01/2003 without battery
5.7 kg
Dimensions (LxWxH)
501 x 120 x 170 mm
A-weighted emission sound pressure level
92 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
4.6 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
HWC
Corner accessibility
49 mm
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- High motor performance and sturdy two-speed gearing for optimum drilling speed
- Compact, lightweight unit – for much easier handling
- Safety clutch, overload protection and safety switch for maximum peace of mind when operating
- Drills penetrations quickly and effortlessly in brick, block and concrete
- Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)
Applications
- Handheld wet coring in reinforced concrete
- Dry coring in aerated concrete, sand lime block, perforated brick, solid brick and clinker
- Drilling out socket recesses for the installation of electrical fittings
- Through holes for cables and cable trays
- Through holes for pipes etc. in plumbing, heating and air conditioning installation
For approval or certificate information, please see individual items.
