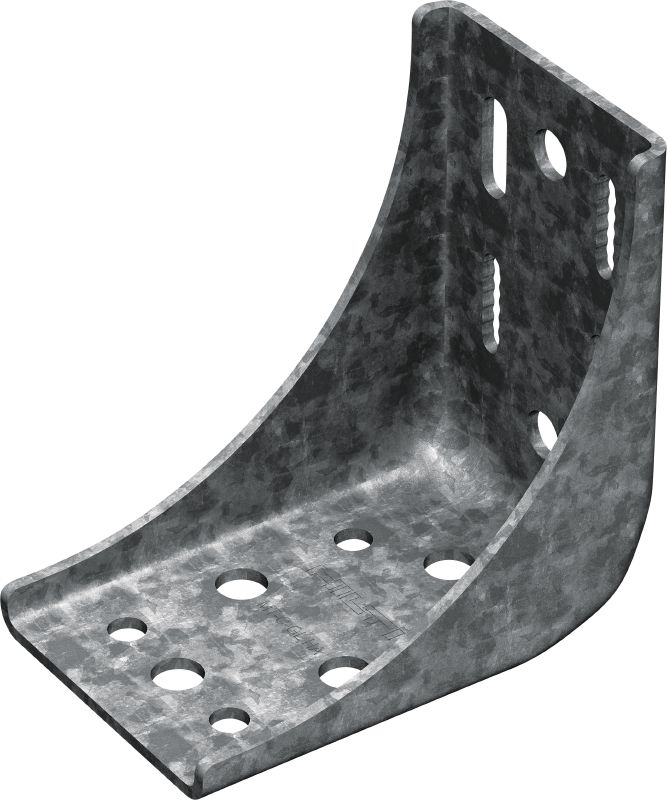

MT-C-GL HA OC Angle bracket
New productItem #r21812581
Semi-adjustable and braced angle bracket, for heavy-duty MT box profiles with 3D loading in moderately corrosive environments
- Material composition: Q355 or better steel
- Surface finish: Outdoor Coated - HDG
- Material thickness: 4 mm
Share
Features

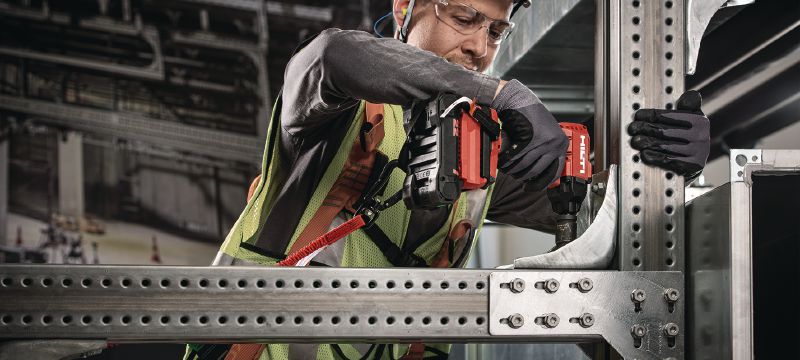

- Faster to install – quick installation with MT T-head bolts (MT-THB OC) or MT thread forming bolts (MT-TFB OC), and compatible with the Hilti Adaptive Torque system, to help avoid over- or under-torquing (compatible tool and SI-AT module required)
- Versatile and secure connections – use oblong holes to adjust height in 5mm (1/4") increments and cloud holes with thread forming bolts (MT-TFB) for secure connections between MT box profiles
- Seamless adjustability – use the anchor holes in the middle of the angle connector for mounting to MT-90H profiles, allowing you to attach, adjust and re-adjust at any point along the profile's seamless groove
- Flexible – angle brackets can also be used as a baseplate, achored to concrete, or directly fastened to steel (combine one, two, or four brackets to match your load requirements)
- Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures
Applications

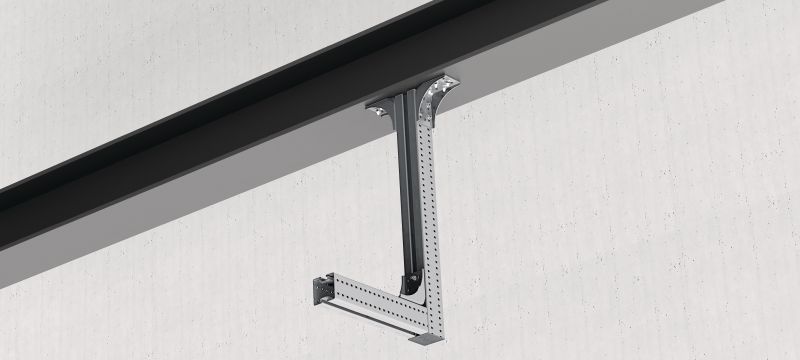

- Right-angle connections between MT-80, MT-90 and MT-100 box profiles when resistance to 3D stresses is required
- Fastening MT C-Channel profiles to concrete floors, walls, ceilings, or to structural steel
- Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
- Process piping for energy and industry applications
- Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
