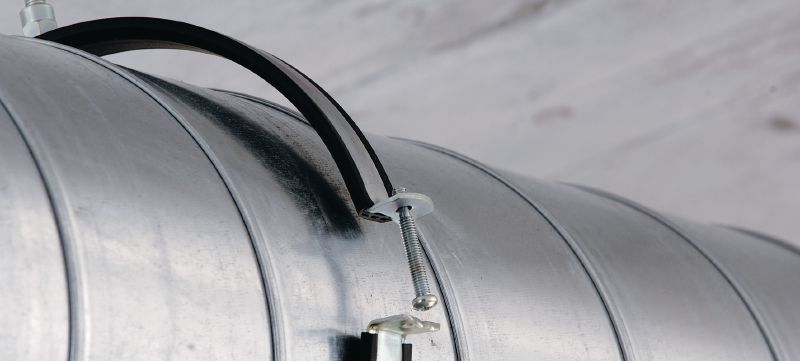

MV-PI Ventilation pipe clamp
Galvanised ventilation pipe clamp with sound insulation for high productivity in spiral duct applications
- Temperature resistance: -40 - 110 °C
- Material composition: DD11 - DIN EN 10111
- Surface finish: Indoor Coated - Electro galvanised
Technical Data
Temperature resistance
-40 - 110 °C
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
55° ±5° Shore A
Documents
Features & Applications
Features
- Click closure – pipes in different diameters can be inserted and fastened quickly and conveniently using the vertical quick-lock closure
- Captive acoustic insulation insert – EPDM rubber insert with wide edge-gripping profile (up to 450 mm dia.); adhesive bonded on 500 mm dia. and larger to help prevent slippage during installation
- Clamping ranges suitable for all standard-sized folded spiral-seam pipes
- Ventilation pipe rings with M8/M10 connection head
- Sound insulation certified for DIN 4109
Applications
- Fastening spiral-seam ducts as per DIN 24145/DIN EN 1506
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
