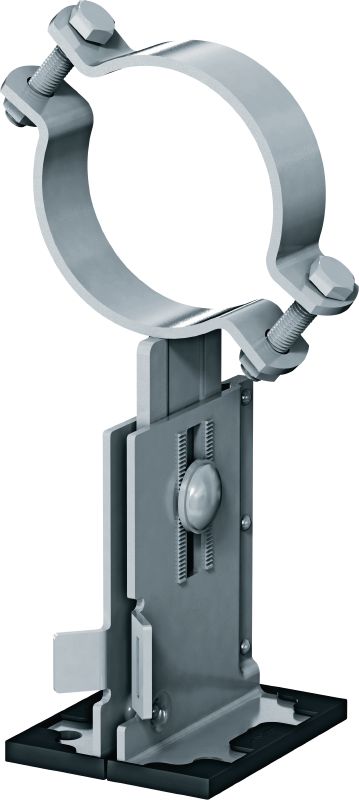

MP-PS 1-1 pipe shoe

Pipe shoe MP-PS H1-1 125-133 OC #2330966

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003620_v4 (229400)
LCG003621_v4 (229403)
LCG003739_v1 (2299397)
LCG003740_v1 (2299405)
IS_MP-PS L1-1_0002_schwarz (229469)
IS_MP-PS front_0002 (229468)

Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 21-173 mm (1/2" to 6")

  • Clamping range - D: 125 - 133 mm
  • Fire resistance (yes/no): No
  • Temperature resistance: -20 - 300 °C

Choose options

Clamping range - D
  • 125 - 133 mm
Height above ground to base of pipe
  • 171 - 223.5 mm
Pack size
  • 4 pc
 Product options
Quantity
Packs
Total Pieces
4
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
For Pricing

Please contact us on 0800 444 584

Technical Data

Details
Technical illustrations
Clamping range - D
125 - 133 mm
Fire resistance (yes/no)
No
Temperature resistance
-20 - 300 °C
Material composition
Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Material thickness
base-plate: 4mm, Middle-plate: 7mm, Sliding-plate: 3mm, Serrated washer: 4mm
Surface finish
Outdoor Coated - HDG
Hot-dip galvanized
Yes
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Concrete, Steel, Modular Support
Clamping screw
M12x60
Tightening torque
50 Nm
Wrench size
19 mm
Tightening torque for height adjustment
50 Nm
Cross section width - b
40 mm
Cross section thickness - s
5 mm
Cross section width and thickness (b x s)
40 x 5 mm
Height - H
352 mm
Height above ground to base of pipe
171 - 223.5 mm
Height above ground to base of pipe min.
171 mm
Height above ground to base of pipe min. (conversion inch fractional)
6-11/16 in
Height above ground to base of pipe max.
223.5 mm
Height above ground to base of pipe max. (conversion inch fractional)
8-3/4 in
Height above ground to center of pipe
237.5 - 290 mm
Height above ground to center of pipe min.
237.5 mm
Height above ground to center of pipe min. (conversion inch fractional)
9-3/8 in
Height above ground to center of pipe max.
290 mm
Height above ground to center of pipe max. (conversion inch fractional)
11-7/16 in
Width - B
195 mm
Length
141 mm
Weight
2.81 kg

Documents

Documentation
Sustainability Documentation
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete
  • Extensive software support – simplify calculation by using PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and various plug-ins
  • Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components
  • Quicker installation on-site – easily adjust the height and slope after fastening the pipe shoe in place
  • Wider clamping range – suitable for various different pipes with or without additional inlays

Applications

  • Fastening pipes to steel beams, concrete or Hilti modular support girders
  • Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities
  • Suitable for application temperatures of up to 300 °C and an insulation thickness of up to 220 mm
  • Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)
