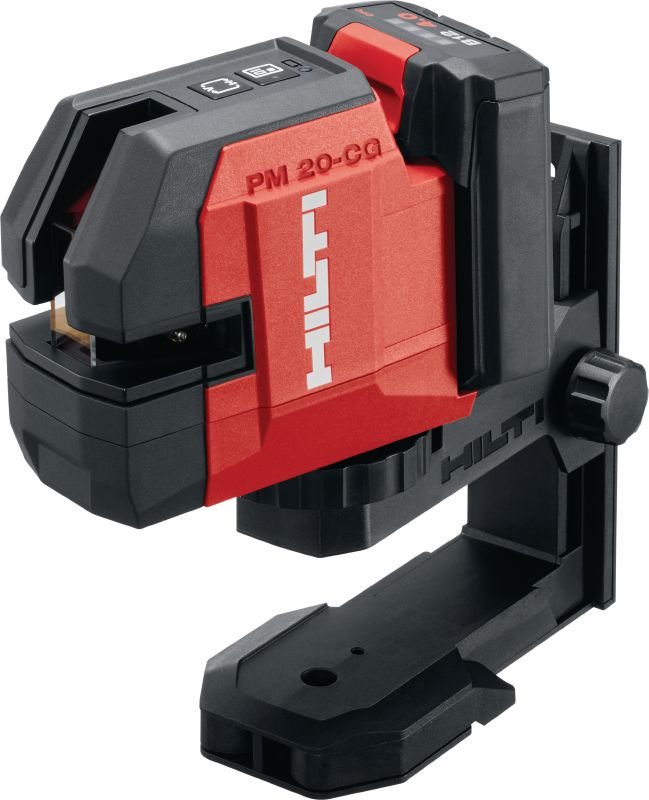

PM 20-CG 12V Plumb and cross line laser

L125944_v1S (1932414)
L125944 (1932396)
L125924 (1932462)
L142440 (228397)
L142461 (228400)
L142473_cropped (228401)
L125944_v1S (1932414)
L125944 (1932396)
L125924 (1932462)
L142440 (228397)
L142461 (228400)
L142473_cropped (228401)

Green beam combi-laser with 2 queues and 4 points for plumbing, leveling, aligning and squaring (12V battery platform)

  • Accuracy: ±3 mm at 10 m
  • Max. operating distance (diameter): 40 m (lines), 100 m (lines, with receiver)
  • Maximum operating time: 33 h

Technical Data

Accuracy
±3 mm at 10 m
Max. operating distance (diameter)
40 m (lines), 100 m (lines, with receiver) 1
Maximum operating time
33 h
Battery type
12 V
Self-levelling range at room temperature
+/-4 °
Self-levelling time
3 s
Horizontal fan angle
200 °
Vertical fan angle
160 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

Features & Applications

Features

  • High-speed layout – compact, self-levelling cross line laser with magnetic bracket so that you can get started with minimal setup time
  • Up to 5 days of continuous layout work per charge – powered by the same longer-lasting batteries as your other Hilti 12V tools
  • Ultimate versatility – laser cross, four dots and slope mode make this line laser level suitable for virtually all alignment and layout work, even on inclines
  • Better visibility up to 20 m – equipped with green beam for easier use indoors and in bright light
  • Built for jobsite conditions – IP 54 rated protection against dust and moisture and class 2 laser which requires no special precautionary measures

Applications

  • Aligning pipes, cable trays, lighting and drywall track
  • Leveling power outlets, cable trays, radiators and pipe installations
  • Aligning and leveling doors, windows and handrails
  • Transferring track positions and fastening points from floors to ceilings (laser plumb bob)
  • Transferring reference heights

For approval or certificate information, please see individual items.
