CFS-B firestop bandage
Firestop bandage CFS-B #429557

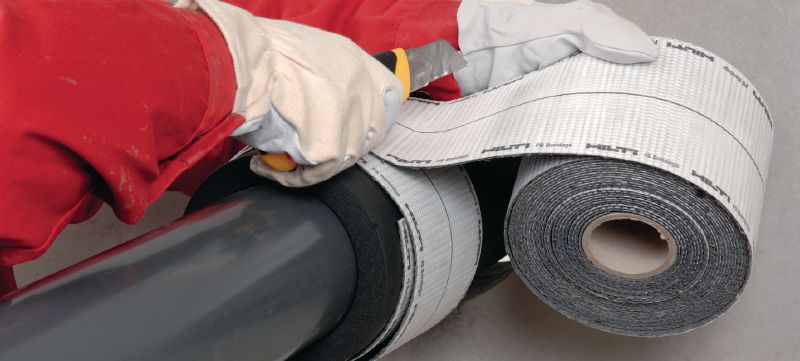

Firestop bandage to help create a fire and smoke barrier around non-combustible pipes with combustible insulation
- Dimensions (LxWxH): 10000 x 125 x 2 mm
- LEED VOC: N/A g/l
- Expansion ratio (unrestricted, up to): 1:14
ultimate
Customers also searched for HVAC, Insulated, Metal Pipes, Elastomeric Insulation or Intumescent.
Choose options
Width
- 125 mm
Length
- 10000 mm
Pack size
- 1 pc
Quantity
Packs
Total Piece
1
Discounted net
NZD565.00
NZD565.00 / 1 Piece
Technical Data
Dimensions (LxWxH)
10000 x 125 x 2 mm
LEED VOC
N/A g/l
Expansion ratio (unrestricted, up to)
1:14
Expansion temperature (approx.)
210 °C
Can be painted
No
Length
10000 mm
Height
2 mm
Product class
Ultimate
Application temperature range
-5 - 50 °C
Storage and transportation temperature range
-5 - 50 °C
Temperature resistance range
-20 - 100 °C
Documents
Features & Applications
Features
- Highly versatile – one product for firestopping different types of insulated metal pipes
- High resistance to mould and mildew – tested to EN ISO 846 standards
- High elasticity – flexible enough to use on small-diameter pipes
- Fast and easy to install, small annual space required
Applications
- Firestopping around insulated (hot/cold) non-flammable pipes
- Pipe materials: copper, steel and other metals with heat conductivity lower than that of copper (e.g. cast iron, stainless steel etc.)
- Suitable for use in openings in concrete, masonry block or plasterboard
