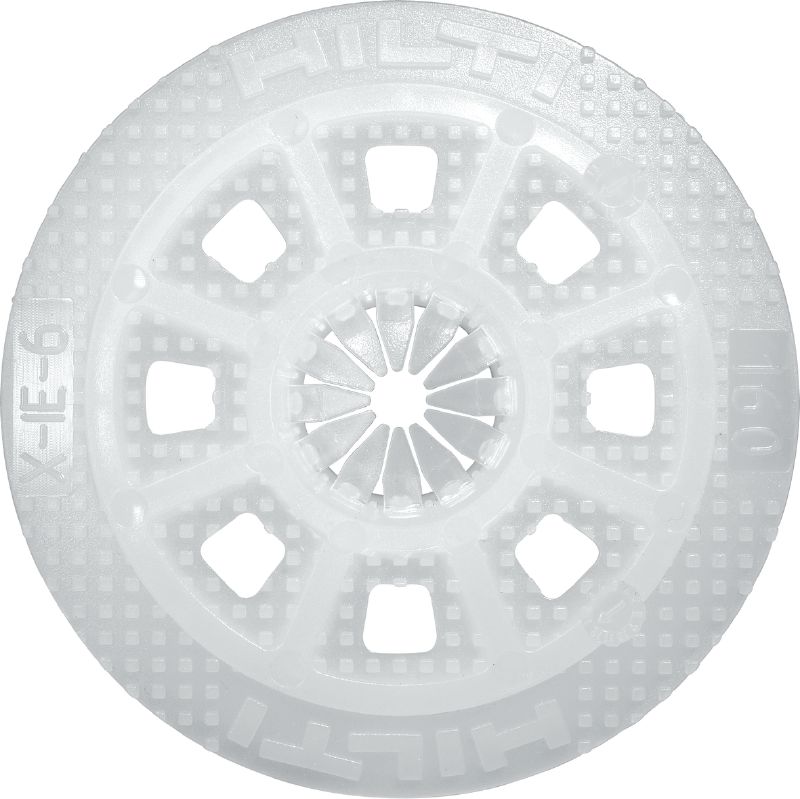

X-IE 6 Insulation fastener

L054657 (141011)
L054651.tif
DX 5 IE (87201)
DX 5 IE (87205)

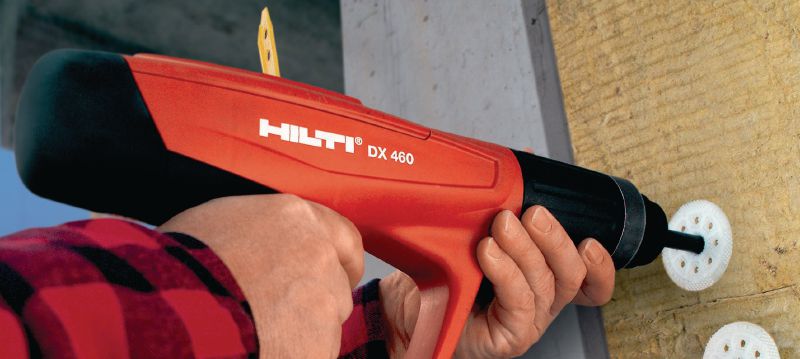

DX 460
17046.tif
X-IE 6 EPS insulation fastener
L054657 (141011)
L054651.tif
DX 5 IE (87201)
DX 5 IE (87205)
DX 460
17046.tif
X-IE 6 EPS insulation fastener
DX 460-IE_Ceiling application_prv_EN (EN / 181177)

White insulation fastener for EPS board on concrete

  • Application: Rigid Board Insulation, Mineral Wool Insulation
  • Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
  • Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
ultimate

Customers also searched for EPS, underslab insulation or soffit insulation.

Technical Data

Application
Rigid Board Insulation, Mineral Wool Insulation
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Base materials
Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
Approvals
ITB
For use with (tools)
DX-IE
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
4 mm
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Colour
Colourless
Product class
Ultimate

Documents

Features & Applications

Features

  • Very fast insulation fastening system: up to five times quicker than conventional methods
  • High-strength fastener with low failure rate
  • Collapsible section: no crushing of the insulation material
  • Gauge included for easy visual control of fastener driving depth
  • Gauge included for easy visual control of correct fastener driving depth

Applications

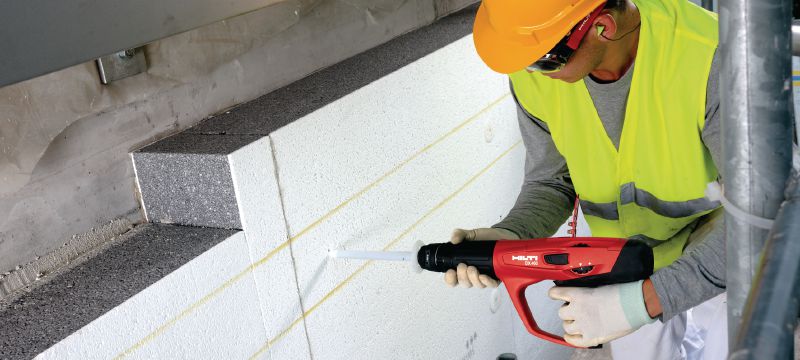

  • Fastening insulation on facades
  • Fastening insulation on ceilings
  • Fastening insulation on cellar exteriors
  • Fastening mineral wool insulation
  • Suitable for non ETICS insulation applications

For approval or certificate information, please see individual items.
