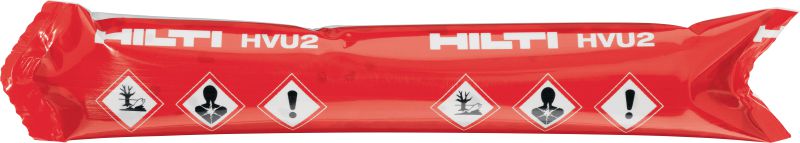

Ultimate-performance foil adhesive capsule for heavy-duty anchoring in concrete

  • Approvals / test reports: ETA
  • Base material condition: Dry, Wet
  • PROFIS software: Yes

Customers also searched for capsuleglass capsuleCracked Concrete or Seismic.

Technical Data

Approvals / test reports
ETA
Base material condition
Dry, Wet
PROFIS software
Yes
Material composition
Hybrid urethane methacrylate adhesive
Tested/approved for diamond drilling
Yes
In-service temperature – range
-40 - 120 °C
Storage and transportation temperature range
5 - 25 °C
Seismic loading
Yes
Installation direction
All
Cleaning procedures
Automatic cleaning (SafeSet hollow drill bit)

Documents

Features & Applications

Features

  • Tough and resilient soft foil capsule – no more risk of breakage, like with glass capsules
  • Suitable for use under tough jobsite conditions including water-saturated holes and at low temperatures, even in diamond-cored holes
  • High performance in seismic and static conditions in cracked and uncracked concrete

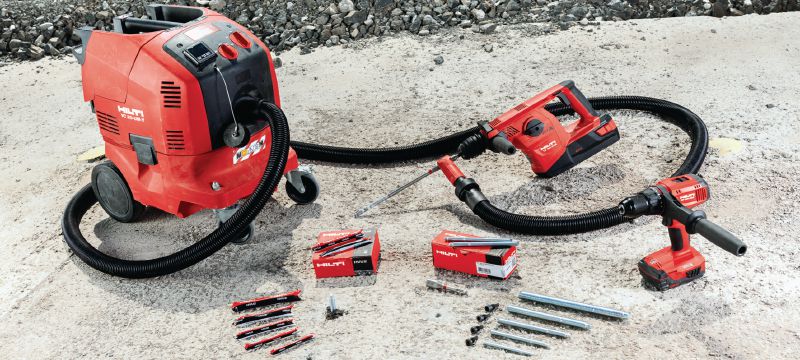

  • Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
  • Fast and convenient installation and no need to purchase a special setting tool

Applications

  • Anchoring steel structures (e.g. racking, guard rails, fences and gates)
  • Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
  • Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
  • Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)
  • Anchoring curtain wall facades

For approval or certificate information, please see individual items.
